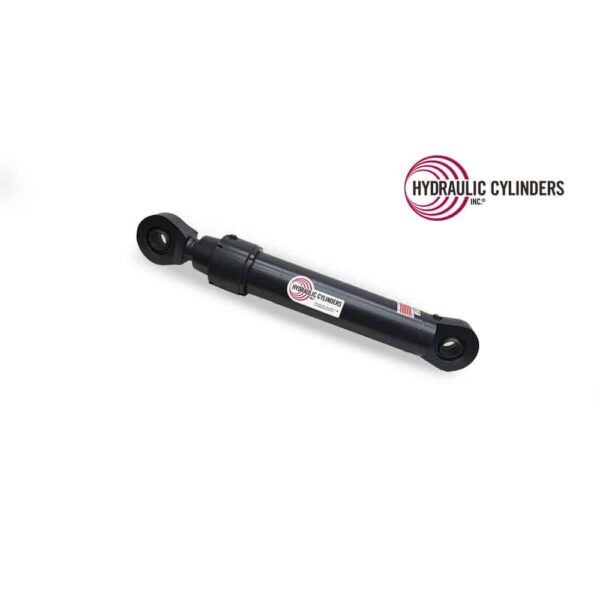

Replacement Hydraulic Dozer Angle Cylinder for John Deere (PN: AHC16691) Crawler Dozer Models 750J, 750K

$2,606.00

Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for HCI-AHC16691

CategoryReplacement Welded Rod Hydraulic Cylinders » Other » Crawler Dozer
Fits Manufacturer John Deere
Models John Deere 750J, John Deere 750J-2, John Deere 750K
Function Dozer Angle
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU HCI-AHC16691
Weight 155.0 lbs

Bore

110mm

Rod

70mm

Old OEM PNs

AH217118, AHC16689

Description

Made for John Deere 750-series dozers, including the 750J and 750K, this angle cylinder (PN: AHC16691) powers the horizontal pivot of the blade. It helps operators shift and shape material with precision. Engineered to match or exceed OEM standards, it’s built to handle the rigors of daily dozer work.

Bore:

110mm

Rod:

70mm

Old OEM PNs:

AH217118, AHC16689

Returning Merchandise

New and un-used stock items maybe returned for refund within 30 days of purchase. No returns are accepted without prior authorization, call 888-771-1894 or email [email protected] to receive a return authorization number. Make sure to properly package your item to avoid damage in transit. Hydraulic Cylinders Inc. is not responsible for any shipping charges or damages for the return of product to Hydraulic Cylinders Inc. It is the responsibility of the sender to provide for all shipping, handling, and insurance charges.

Warranty Coverage:
Hydraulic Cylinders Inc. warrants its Replacement Welded Rod Cylinders against defects in materials and workmanship for 12 months from the date of purchase.

Exclusions & Conditions:

  • Disassembly voids warranty coverage.
  • Misuse, misapplication, or unauthorized modification is not covered.
  • HCI does not provide engineering guidance or warrant product fitness for any specific application.
  • It is the customer’s responsibility to ensure product suitability and compliance with all regulations and application requirements.

Claims Process:
Contact Hydraulic Cylinders, Inc. directly to initiate a warranty review. Claims require return and evaluation of the product.
