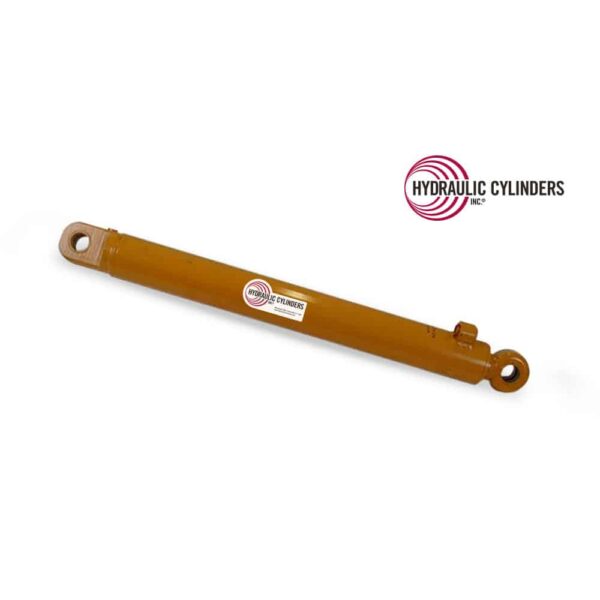

Replacement Hydraulic Backhoe Bucket Cylinder for Case (PN: G109434) Backhoe Loader Models 580D, 580E, 580SD, 580SE, 35C

Replacement Case G109434 Bucket Cylinder Models 580B, 580C, 580D, 580SD, 580E, 580SE LOADER BACKHOE

$1,581.00

Fast Ship What's This?
Need help with your cylinder part number? Call us at (888) 771-1894 with your machine's serial number, and we'll ensure you get the perfect replacement!

Specifications for HCI-G109434

CategoryReplacement Welded Rod Hydraulic Cylinders » Loader/Tractor » Backhoe Loader
Fits Manufacturer Case
Models Case 35C, Case 35C WL, Case 580D, Case 580E, Case 580SD, Case 580SE
Function Backhoe Bucket
Features Double-Acting Rod Hydraulic Cylinder (DAR)
SKU HCI-G109434
Weight 124.0 lbs
Bore

3.50″
Rod

2.50″
Stroke

30.625″
Closed

42.688″
Open Extended Length

73.313″
Base Pin Size

1.75″
Base Mount Width

2.00″
Rod Pin Size

1.75″
Rod Mount Width

2.25″
Extend Port/Plunger

-10 SAE ORB
Retract Port/Plunger

-10 SAE ORB
Old OEM PNs

G103350

Description

This replacement bucket cylinder (PN: G109434) fits both compact and full-size Case backhoes—35C, 35C WL, 580D, 580E, 580SD, and 580SE. Whether you’re lifting or dumping, it delivers the hydraulic control needed to keep your machine productive, and it’s built to OEM standards for long-term performance.

Bore:

3.50″

Rod:

2.50″

Stroke:

30.625″

Closed:

42.688″

Open Extended Length:

73.313″

Base Pin Size:

1.75″

Base Mount Width:

2.00″

Rod Pin Size:

1.75″

Rod Mount Width:

2.25″

Extend Port/Plunger:

-10 SAE ORB

Retract Port/Plunger:

-10 SAE ORB

Old OEM PNs:

G103350
